1TS005D-2500-5001-ct

Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website！

首页| 尊龙z6集团中国官方网站

Product

Low-cost solutions: Electrical equipment, industrial control, network equipment, household electrical appliances, toys

Reference alternative:

首页| 尊龙z6集团中国官方网站

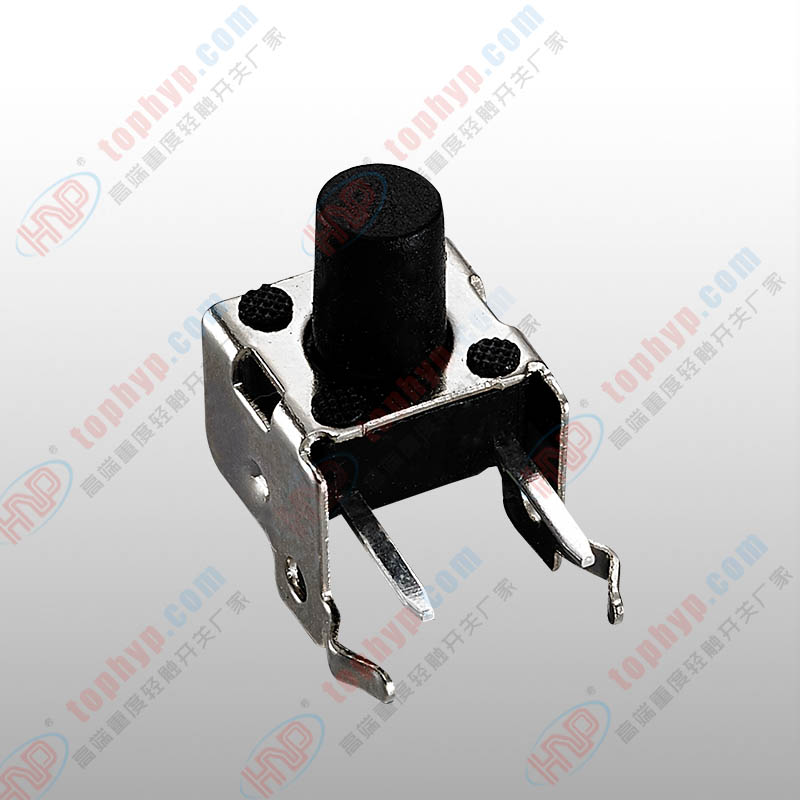

Item	Tact switch detail	Tact switch detail 2
Article number	1TS005D	1TS005D
Model	1TS005D	1TS005D
Series	1TS005	1TS005
(LxW) (mm)	6*6mm	6*6mm
(H) (mm)	4.3/5.0±0.1mm	4.3/5.0±0.1mm
Installation height (mm)	4.3/5.0±0.1mm	4.3/5.0±0.1mm
Operation	Side-press type	Side-press type
Welding type	SMD	SMD
Live-fire type	Surface mount	Surface mount
Maximum rating	DC 12V/50mA	DC 12V/50mA
Contact resistance (<mΩ)	500mΩ max.	500mΩ max.
Insulation resistance (MΩ at 100V DC)	DC100V 60S 100MΩ min.	DC100V 60S 100MΩ min.
Withstanding voltage	AC250V(50~60HZ) 60S min.	AC250V(50~60HZ) 60S min.
Response time	<10ms (ON, OFF)	<10ms (ON, OFF)
Operating force	130gf	250gf
Stroke	Short stroke	Short stroke
Stroke (mm)	0.25±0.1mm	0.25±0.1mm
Operating life	50000 or more	30000 or more
Operating temperature	–40℃～+90℃	–40℃～+90℃
Storage temperature	–40℃～+90℃	–40℃～+90℃
Package style	Reel packaging	Reel packaging
Mini pakage	1000PCS/reel	1000PCS/reel
Mini pakage	1000PCS/Packaging	1000PCS/Packaging
CTNS/QTY	12reel/ctn	12reel/ctn

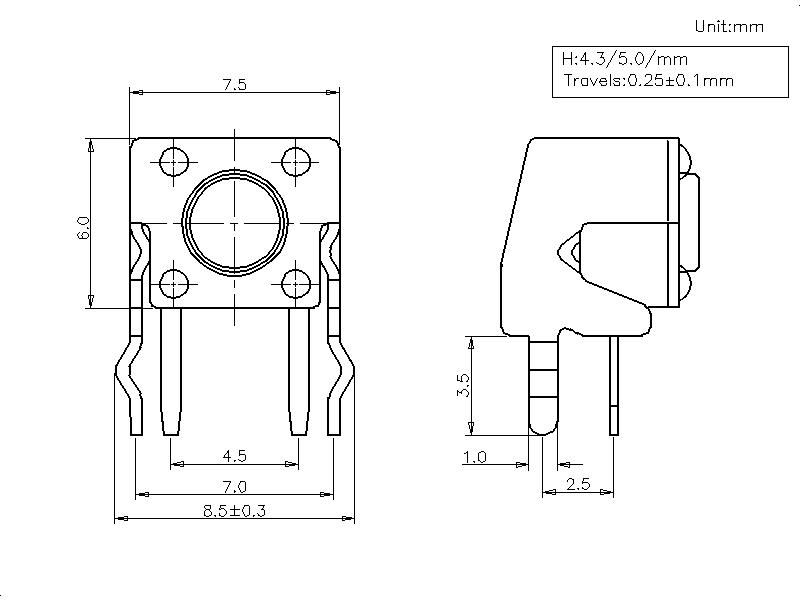

Dimensions:

首页| 尊龙z6集团中国官方网站

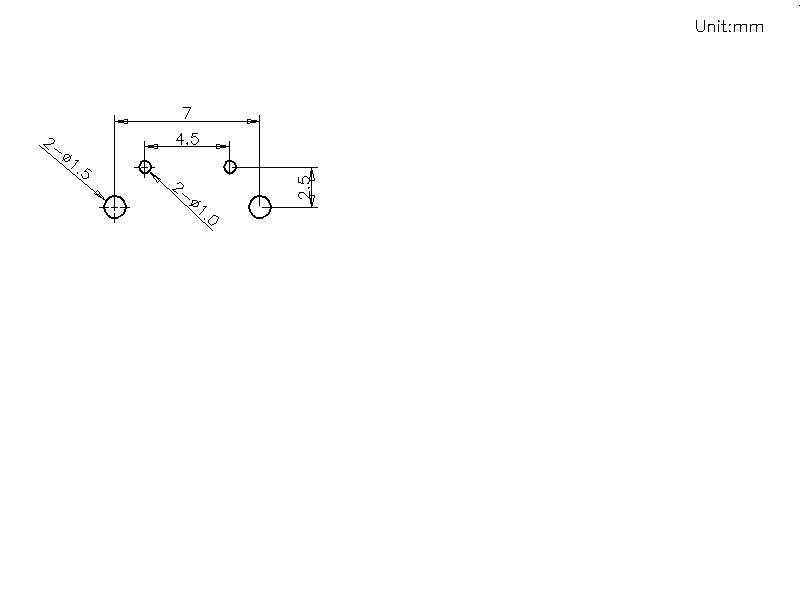

Welding diagram:

首页| 尊龙z6集团中国官方网站

Circuit diagram:

Key words : Top push Switch,1TS005D
